Product Description:

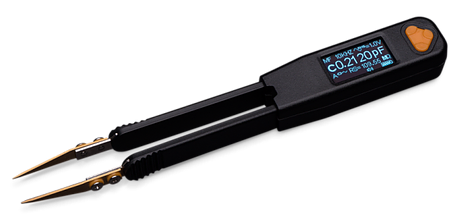

LCR Pro1 Plus are the best tweezers-style LCR meter we have ever made. It has all the great features that come with the LCR Pro1, plus an additional LED testing function and excellent sensitivity to measure very small inductance down to just several nHs thanks to the ultra low noise design and 100kHz testing frequency.

In LED testing, LCR Pro1 Plus lights up the LED and displays its electrical parameters, such as polarity, forward voltage and forward current. When testing bi-directional LEDs, the electrical parameters will be displayed in each direction.

Technical Specifications:

PRODUCT CHARACTERISTICS

Dimensions (L x W x H): 151 x 19 x 15mm

Weight: 30g

Battery Life: All day in typical use, one year in standby

Charging Time: 2.5 hours (typical)

TEST SIGNAL SPECIFICATION

Test Frequency: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz

Test Voltage: 0.2Vrms, 0.5Vrms, 1.0Vrms

Source Impedance: 100Ω

MEASUREMENT RANGE

Resistance: 20mΩ – 10MΩ

Capacitance: 0.1pF – 10mF

Inductance: 10nH – 1H

BASIC ACCURACY

Resistance: 0.1%

Capacitance: 0.2%

Inductance: 0.2%
